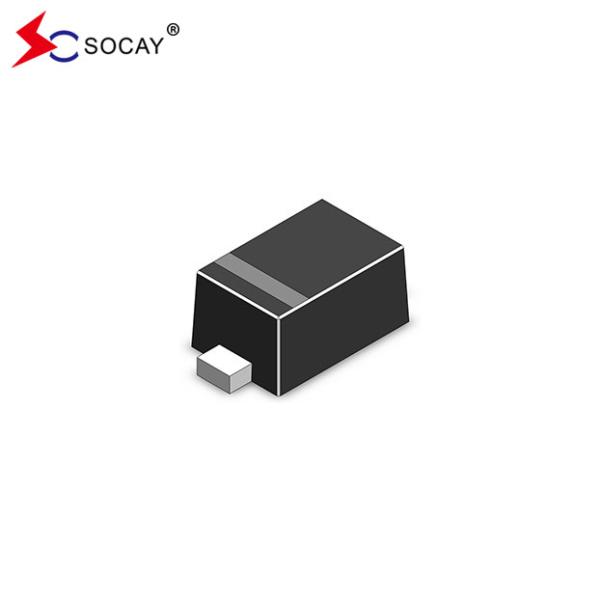

SOD-523 ESD Protection Diode Array SE12D5V11GW Low Clamping Voltage 25V

  • 1
  • 2

Brand Name : SOCAY

Model Number : SE12D5V11GW

Certification : REACH RoHS ISO

Place of Origin : Shenzhen Guangdong China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : ESD Arrays

Product Package : SOD-523

Vrwm (Max.) : 12V

Vbr (Min.) : 14.1V

Ir (Max.) : 0.1μA

It : 1mA

Vc (Max.) (Ipp=5A) : 25V

Cj (Typ.) : 55pF

Contact Now

SOCAY Original Factory ESD Protection Diode SE12D5V11GW Low Clamping Voltage 25V


ESD Protection Diode DATASHEET: SE12D5V11GW_v2108.1.pdf


ESD Protection Diode Features:

  • Protects one I/O line
  • Low clamping voltage
  • Working voltage: 12V
  • Low leakage current


ESD Protection Diode Applications:

  • Cellular Handsets and Accessories
  • Portable Electronics
  • Servers, Notebook, and Desktop PC
  • Display Portst


ESD Protection Diode Mechanical Characteristics:

  • SOD-523 Package
  • Molding Compound Flammability Rating : UL 94V-0
  • Quantity Per Reel : 3,000pcs
  • Reel Size : 7 inch


ESD Protection Diode Pin Configuration:

SOD-523 ESD Protection Diode Array SE12D5V11GW Low Clamping Voltage 25V



ESD Protection Diode Absolute Maximum Ratings (TA=25℃ unless otherwise specified):

Symbol Parameter Value Units
TL Lead Soldering Temperature 260 (10sec) ºC
TSTG Storage Temperature Range -55 to +150 ºC
TOP Operating Temperature Range -55 to +150 ºC
IEC61000-4-2 (ESD) Air Discharge ±30 KV
IEC61000-4-2 (ESD) Contact Discharge ±30
IEC61000-4-4 (EFT) 40 A

I-V Curve Characteristics:

SOD-523 ESD Protection Diode Array SE12D5V11GW Low Clamping Voltage 25V

Symbol Parameter
IPP Maximum Reverse Peak Pulse Current
VC Clamping Voltage @ IPP
VRWM Working Peak Reverse Voltage
IR Maximum Reverse leakage Current @ VRWM
IT Test Current
VB Breakdown Voltage @ IT
IF Forward Current
VF Forward Voltage @IF
C Max Capacitance @VR=0V & f=1MHz




ESD Protection Diode Electrical Characteristics (TA = 25℃ unless otherwise specified):

Symbol Conditions Min Typ Max Unit
VRWM --- --- --- 12.0 V
VBR IT = 1 mA 14.1 --- --- V
IR VR =12V --- --- 0.1 μA
VC IPP =5.0A, tp = 8/20μs --- --- 25.0 V
CJ VR = 0V, f = 1MHz --- 55.0 --- pF





Electrical Characteristics Curves:
Fig1. 8/20μs Pulse Waveform
SOD-523 ESD Protection Diode Array SE12D5V11GW Low Clamping Voltage 25V



Fig2. Positive 8KV contact per IEC 61000-4-2
SOD-523 ESD Protection Diode Array SE12D5V11GW Low Clamping Voltage 25V


Fig3. Negative 8KV contact per IEC 61000-4-2
SOD-523 ESD Protection Diode Array SE12D5V11GW Low Clamping Voltage 25V




SOD-523 Package Outline & Dimensions:
SOD-523 ESD Protection Diode Array SE12D5V11GW Low Clamping Voltage 25V

Symbol Millimeters Inches
Min. Nom. Max. Min. Nom. Max.
A 1.10 1.20 1.30 0.043 0.047 0.051
B 0.70 0.80 0.90 0.028 0.032 0.035
C 0.50 0.60 0.70 0.020 0.024 0.028
D 0.25 0.30 0.35 0.010 0.012 0.014
J 0.07 0.14 0.20 0.0028 0.0055 0.0079
K 0.15 0.20 0.25 0.006 0.008 0.010
S 1.50 1.60 1.70 0.059 0.063 0.067

SOD-523 ESD Protection Diode Array SE12D5V11GW Low Clamping Voltage 25V
